JAC Heavy-Duty - Products - Diesel Forklift

Diesel Forklift

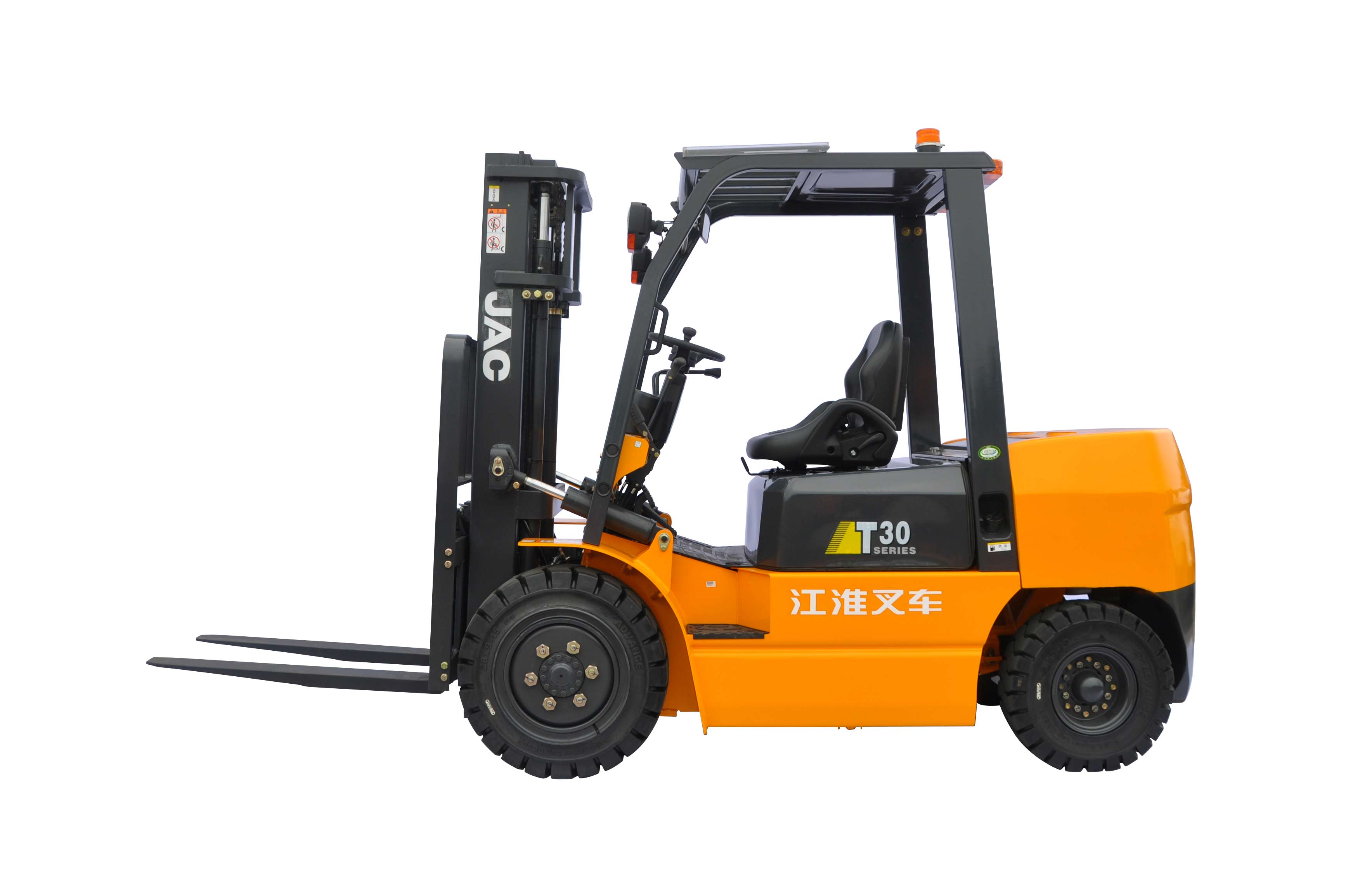

3-3.5T T series Internal Combustion Counterbalance Forklift Truck
				CPCD30T	CPCD35T
Features	Power type			Diesel
	Rated load		kg	3000	3500
	Load center distance		mm	500
	Lift height		mm	3000
	Free lift height		mm	155
	Fork size	L×W×T	mm	1070×125×45	1070×125×50
	Mast tilt angle	FR/RR	。	8/10
	Minimum turning radius		mm	2540	2575
	Height of overhead guard		mm	2090
Performance	Maximum travel speed	Full load	km/h	19	19
		No load	km/h	19	19
	Maximum lift speed	Full load	mm/s	430	485
		No load	mm/s	570	450
	Maximum drawbar pull	Full load	KN	19	28
Dimensions	Overall length	Without forks	mm	2740	2790
	Overall width		mm	1230
	Mast height at maximum lift (with backrest)		mm	4260
	Mast lowered height		mm	2075
